2000 Used Tetra Pak Indirect Tubular UHT Processing Plant – 12,000 LPH

Complete compact UHT processing system with tubular heating section, homogenizer and Siemens S7 control system.

Technical Specifications

• Manufacturer: Tetra Pak
• System Type: Indirect Tubular UHT
• Year of Manufacture: 2000
• Capacity: 12,000 litres per hour
• Maximum Temperature: Up to 145°C
• Approximate Footprint: 6 × 4 metres
• Location: Southern Germany

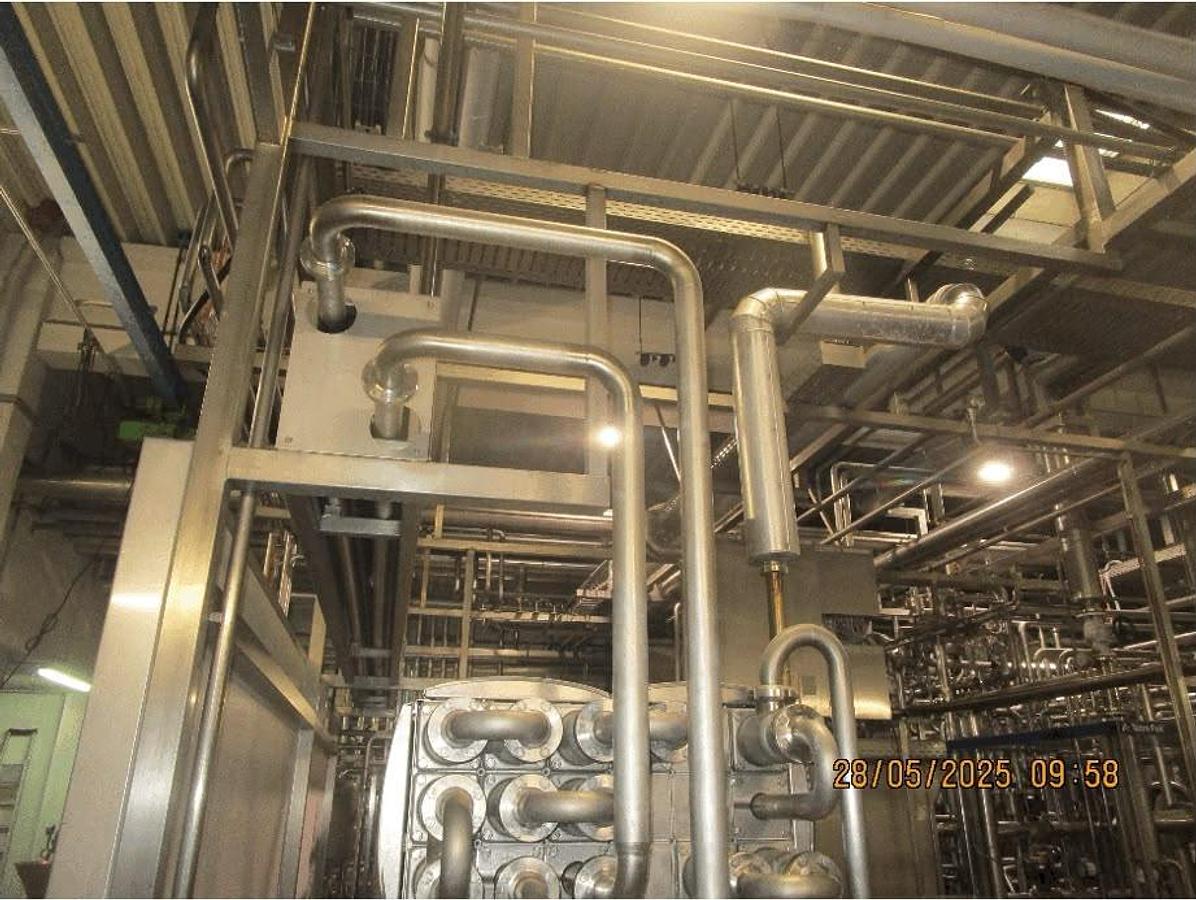

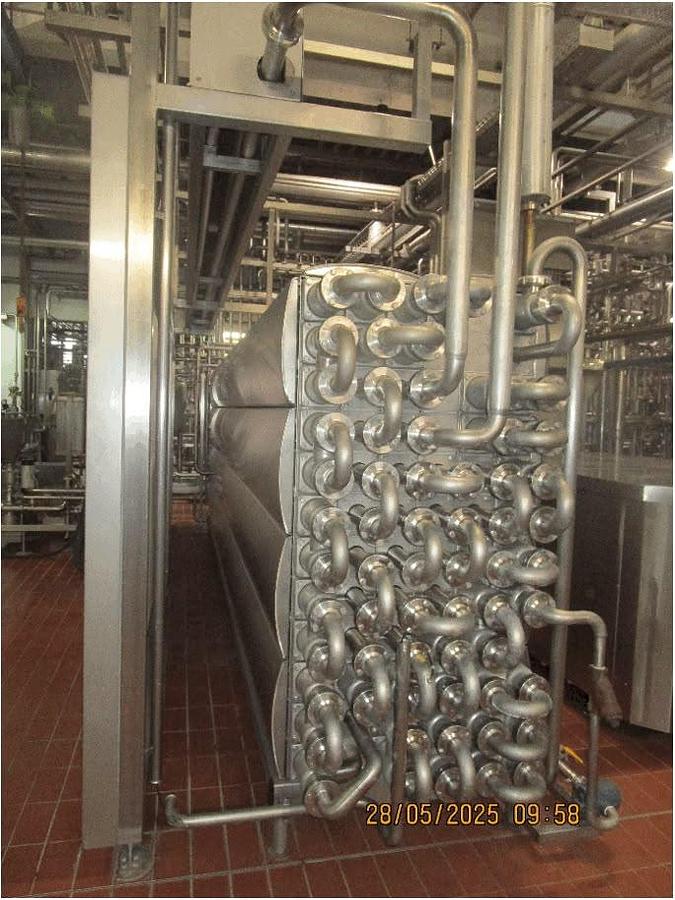

Tubular Heating Unit

• Frame-mounted tubular heating system
• Side-mounted protective panels
• Low-volume overflow system

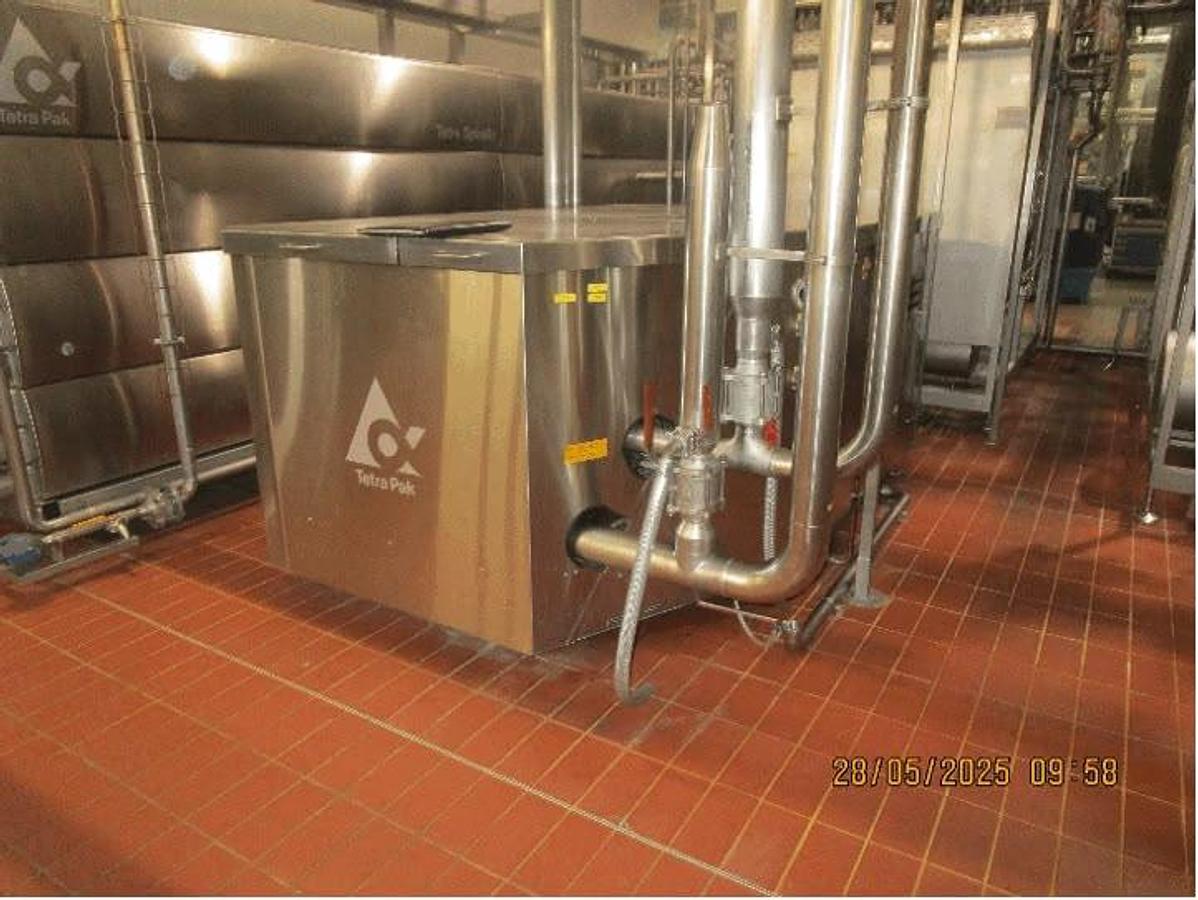

• Balance tank for product return flow
• Fully piped for connection to the filling machine
• Sterile tank not included

Tetra Pak Homogenizer

• Three-piston homogenizer
• Capacity: 12,000 litres per hour
• Maximum pressure: 210 bar
• Operates in the rising-temperature section at approximately 65–85°C

Control System

• Complete electrical control cabinet
• Siemens S7 PLC control system
• Complete system cabling included

Condition and Availability

The complete UHT system is installed at a production facility in southern Germany. It is available for inspection by prior appointment.

Additional photographs, technical information and commercial details are available upon request.
